Rothenberger Romax Compact III Pressing Machine Kit (Press Jaws, 1x 2.0Ah AMPShare Battery, Charger & Case) 1000004333

The Rothenberger ROMAX Compact III Pressing Machine delivers exceptional performance in a streamlined design, completing press cycles in just 3 seconds. With optimal weight distribution and a compact 34cm profile, this tool places its center of gravity directly at the grip point through its innovative dual-cylinder configuration. Engineered for precision pressing of fittings up to 35mm (metal) or 40mm (plastic) in confined spaces, it generates a consistent 19 kN piston force throughout the entire pressing cycle thanks to its advanced Constant Force Technology (CFT).

This ROBEND model integrates with the AMPShare battery ecosystem, enabling cross-compatibility with multiple manufacturers including BOSCH, eliminating the need for brand-specific power sources. The companion application, downloadable from both Google Play and Apple App Store, enhances operational efficiency through intelligent functionality. It enables real-time tracking of pressing cycles and generates immediate on-site pressing documentation, effectively eliminating traditional paperwork requirements. Additionally, the application provides critical verification of proper pressing force application, offering users comprehensive monitoring of machine performance parameters.

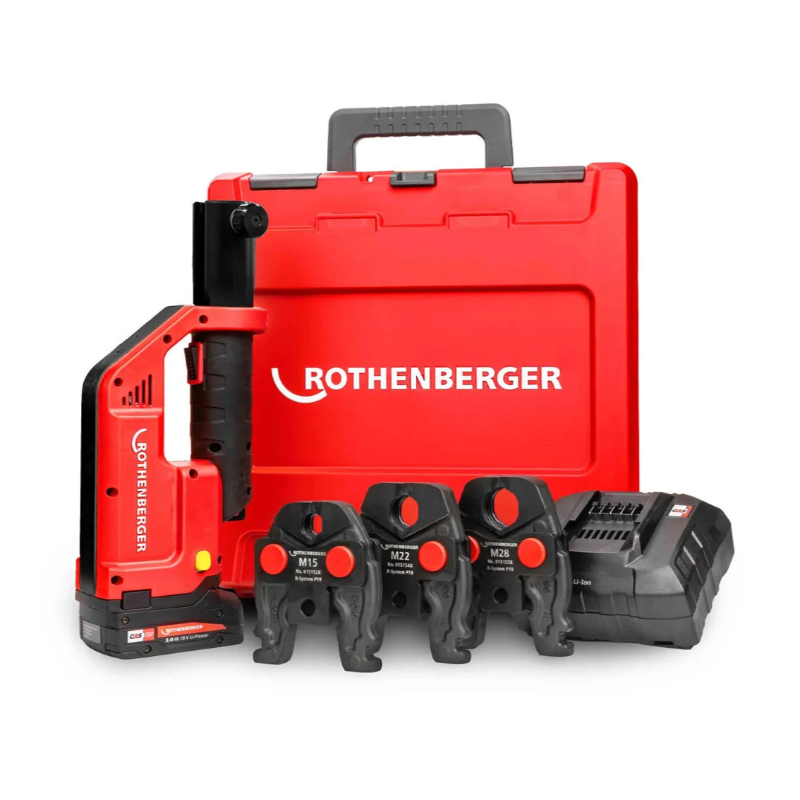

Comes with:

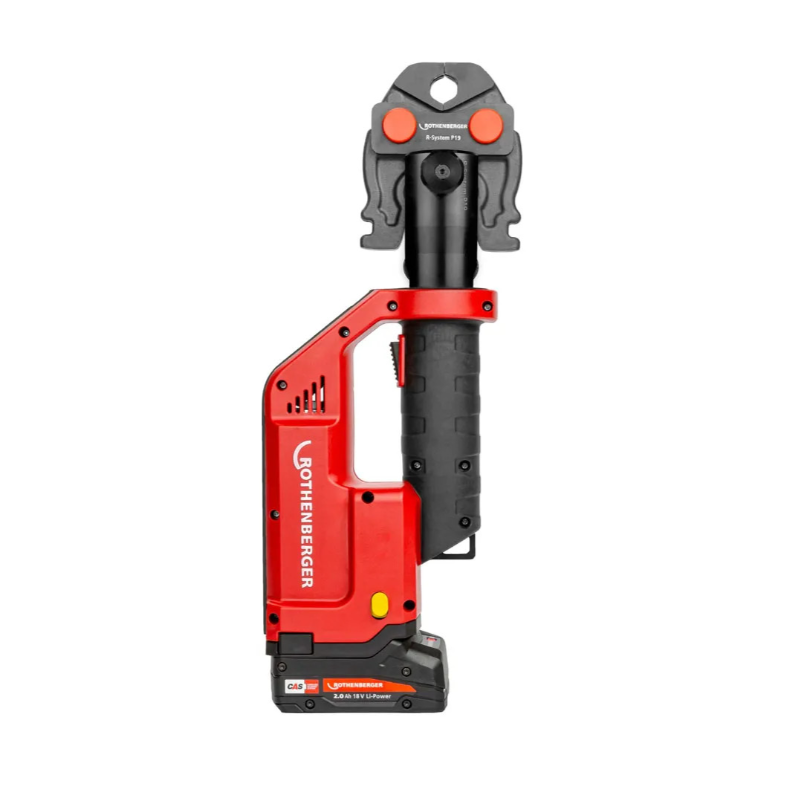

• 1x Rothenberger ROMAX Compact III Pressing Machine - Body
• 1x 15mm Pressing Jaw
• 1x 22mm Pressing Jaw
• 1x 28mm Pressing Jaw
• 1x 2.0Ah 18V AMPShare Battery
• 1x Charger
• 1x Carry Case

Features:

• Rothenberger app shows real time press data
• Fast 3-second pressing via the effective pressure build-up
• Centre of gravity creates perfectly balanced and comfortable work
• Presses fittings up to a diameter of 35mm for metal and 40mm for plastic
• Remote locking
• Features new push-2-lock system
• Press jaw fixture: 270 rotation°
• Piston force: 19kN
• Product height: 34cm
• Bluetooth enabled
• Battery voltage: 18 V
• Rated power consumption: 281 W
• Motor speed: 20400 min-1
• Maximum piston force: max. 21 kN
• Pressing time (according to nominal size): ca. 3 s
• Dimensions (L x W x H, without battery): 303 x 143 x 76 mm
• Weight (without battery): ca. 2,2 kg
• Working range. (system-dependent): Ø 12 - 40 mm
• Application temperature range: 5 - 60°C/ 41 - 140°F
• Operating mode: S3
• Sound pressure level (LpA): 78 dB (A) ¦ KpA 3 dB (A)
• Sound power level (LWA): 89 dB (A) ¦ KWA 3 dB (A)
• The noise level during operation can exceed 85 dB (A). Wear hearing protection!
• Measured values determined in accordance with EN 62841-1.
• Vibration total value: ≤ 2,5 m/s2 ¦ K= 1,5m/s2
• Weight: 2.5kg
